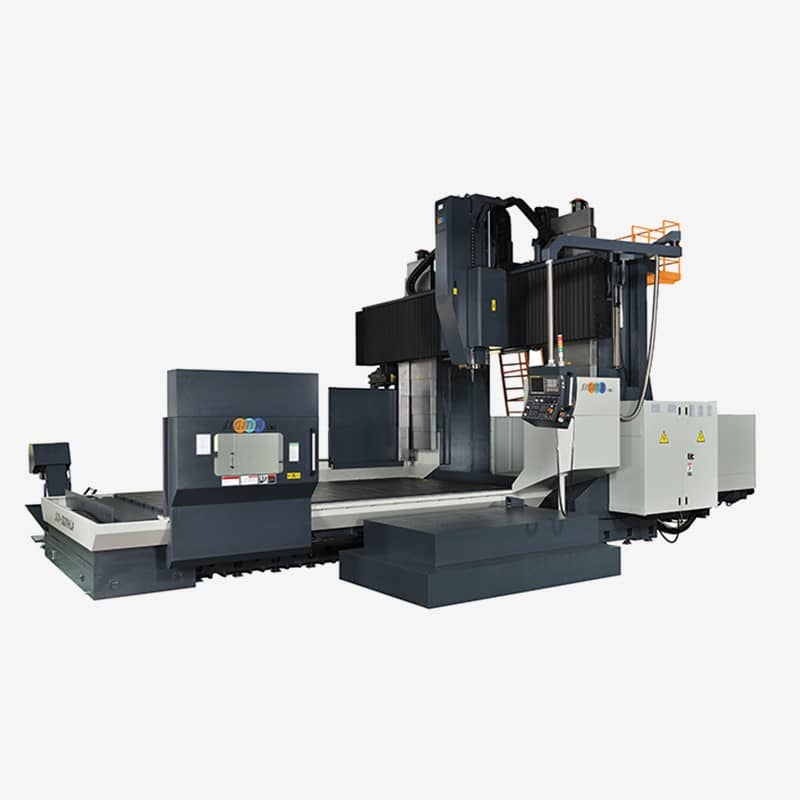

SCR-4239H / SCR-5239H / SCR-6239H
| MODEL | SCR-4239H | SCR-5239H | SCR-6239H |
| X EKSEN HAREKETİ | 4200 mm | 5200 mm | 6200 mm |
| Y EKSEN HAREKETİ | 3900 mm | 3900 mm | 3900 mm |
| Z EKSEN HAREKETİ | 760 (1000) mm | 760 (1000) mm | 760 (1000) mm |
| W EKSEN HAREKETİ | 1400 mm | 1400 mm | 1400 mm |
| TABLO BOYUTU | 4000x3700 mm | 5000x3700 mm | 6000x3700 mm |
| T-KANALLARI | 22 (24,28) mm | 22 (24,28) mm | 22 (24,28) mm |
| TABLA YÜKLEME KAPASİTESİ | 21000 Kg | 25000 Kg | 32500 Kg |
| İKİ KOLON ARASI MESAFE | 4000 mm | 4000 mm | 4000 Kg |
| SPINDLE UCU VE TABLA ARASI MESAFE | 0 ~ 1800 mm | 0 ~ 1800 mm | 0 ~ 1800 mm |
| SPINDLE KONİKLİĞİ | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 HSK-A100 | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 HSK-A100 | ISO NO.50 (40) BT-50, CAT-50, DIN 69871 HSK-A100 |
| SPINDLE DEVRİ | 20 ~ 4000 (30 ~ 6000) (80 ~ 8000) (100 ~ 10000) rpm | 20 ~ 4000 (30 ~ 6000) (80 ~ 8000) (100 ~ 10000) rpm | 20 ~ 4000 (30 ~ 6000) (80 ~ 8000) (100 ~ 10000) rpm |
| ANA MOTOR GÜCÜ | 30 / 25 (35 / 30) HP | 30 / 25 (35 / 30) HP | 30 / 25 (35 / 30) HP |
| X,Y,Z BOŞTA HAREKETİ | 10000 (12000) mm/min | 10000 (12000) mm/min | 10000 (12000) mm/min |
| Z EKSENİ BOŞTA HAREKETİ | 12000 (15000) mm/min | 12000 (15000) mm/min | 12000 (15000) mm/min |
| KESEME DEĞER ARALIĞI | 1 ~ 5000 (1 ~ 8000) mm/min | 1 ~ 5000 (1 ~ 8000) mm/min | 1 ~ 5000 (1 ~ 8000) mm/min |
| TAKIM KAPASİTESİ | (24 / 32 / 40 / 60) pcs | (24 / 32 / 40 / 60) pcs | (24 / 32 / 40 / 60) pcs |
| MAKS. TAKIM ÇAPI | Ø125 / Ø210 mm | Ø125 / Ø210 mm | Ø125 / Ø210 mm |
| MAKS. TAKIM UZUNLUĞU | 350 mm | 350 mm | 350 mm |
| MAKS. TAKIM AĞIRLIĞI | (18 / 20) Kgs | (18 / 20) Kgs | (18 / 20) Kgs |
| TAKIM SEÇME | (ABS, Random Bi) | (ABS, Random Bi) | (ABS, Random Bi) |
| TAKIM DEĞİŞTİRME | 11 (4.5) sec | 11 (4.5) sec | 11 (4.5) sec |
| GÜÇ GEREKSİNİMİ | 65 kVA | 75 kVA | 85 kVA |
| ALAN GEREKSİNİMİ | 13200x9200 mm | 15000x9200 mm | 17500x9200 mm |
| MAKİNE YÜKSEKLİĞİ | 5140 (5490) mm | 5140 (5490) mm | 5140 (5490) mm |
| MAKİNE AĞIRLIĞI | 59 TON | 78 TON | 91 TON |
| KONTROL SİSTEMİ | Fanuc, Meldas, Siemens, Heildenhain Series etc. | Fanuc, Meldas, Siemens, Heildenhain Series etc. | Fanuc, Meldas, Siemens, Heildenhain Series etc. |
| POZİSYONLAMA | JIS B6338 0.01/300, VDI 3441 P0.035 mm | JIS B6338 0.01/300, VDI 3441 P0.035 mm | JIS B6338 0.01/300, VDI 3441 P0.035 mm |
| TEKRARLAMA | ±0.005 mm | ±0.005 mm | ±0.005 mm |
- LUBRICATION SYSTEM
- GLAZED WINDOW-TYPE SPLASH GUARD
- SCREW-TYPE CHIP CONVEYOR
- LINK-TYPE CHIP CONVEYOR
- COOLANT EQUIPMENT
- SPINDLE OIL COOLER
- Z-AXIS HYDRAULIC BALANCE UNIT
- PNEUMATIC UNIT
- AIR BLOW FOR CHIP ( BY M-CODE )
- WORK LAMP
- AUTO POWER-OFF
- M.P.G
- PROGRAM END&ALARM LAMP
- RS-232 INTERFACE
- LEVELING BLOCK AND BOLTS
- TOOL KIT
- MAINTENANCE AND OPERATION MANUAL
- CONTROLLER OPERATION MANUAL AND ELECTRICAL CIRCUIT DIAGRAM
- INSPECTION LIST
- AUXILIARY TABLE
- NC(ROTARY TABLE,INDEX TABLE)
- 20、32、40、60、80 ATC MAGAZINE CAPACITY
- TOOL PRESETTER
- AUTO TOOL LENGTH DIAMETER MEASUREMENT
- AUTO TOUCH PROBE SYSYTEM
- LINEAR SCALE FEEDBACK
- COOLANT THROUGH SPINDLE SYSTEM
- OIL HOLE TOOL SHANK DEVICE
- COOLANT AUTO AIR MIST DEVICE
- COOLANT NOZZLE ANGLE REMOTE CONTROL
- MANUAL 45° , 90° ANGLE HEAD、UNIVERSAL HEAD、EXTENSION HEAD； MANUAL SET-UP AUTO DEVIDED 5° POSITION (RIGHT ANGLE HEAD, SWING DEVIDED ANGLE HEAD, 45° ANGLE HEAD)
- SPINDLE THERMAL COMPENSATION
- AVALIABLE WITH DIFFERENT SPINDLE SPEC & RPM
- SIGMA CNC Patent - The spindle ram and Z-axis are designed with 4-linear guideways (Roller type guideway, width 45mm) and a box-way construction. During heavy cutting vibrations are eliminated, and during fine cutting inert does not occur, resulting in higher surface accuracy.
- All three axes(X, Y, Z) are Roller type linear guideways.
-

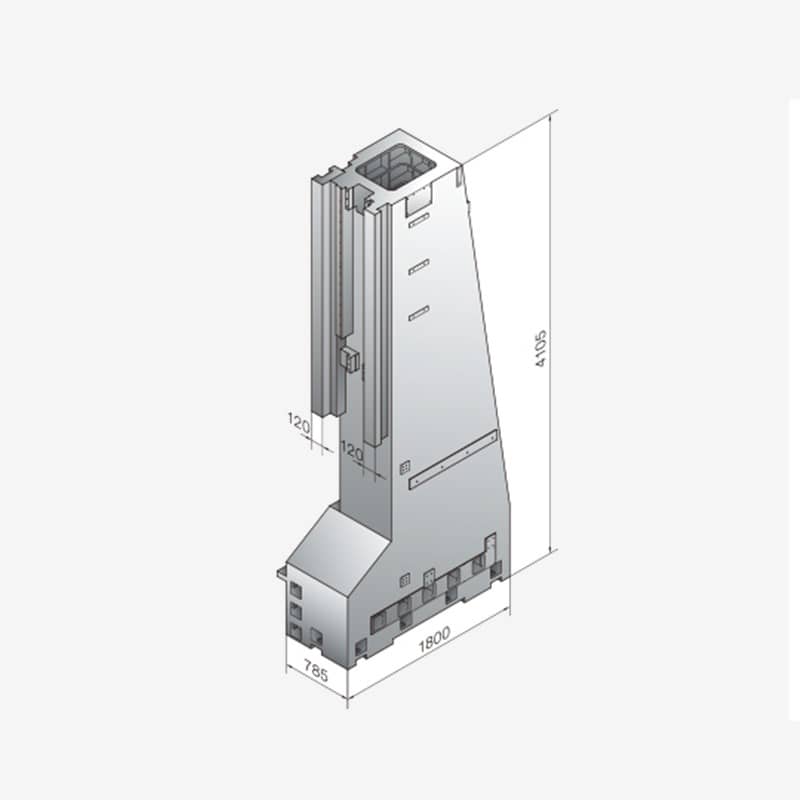

Stronger W-axis (box-way) with Super Column Design
W-axis Standard Stroke 1400mm. (It is possible to be custom-made)
-

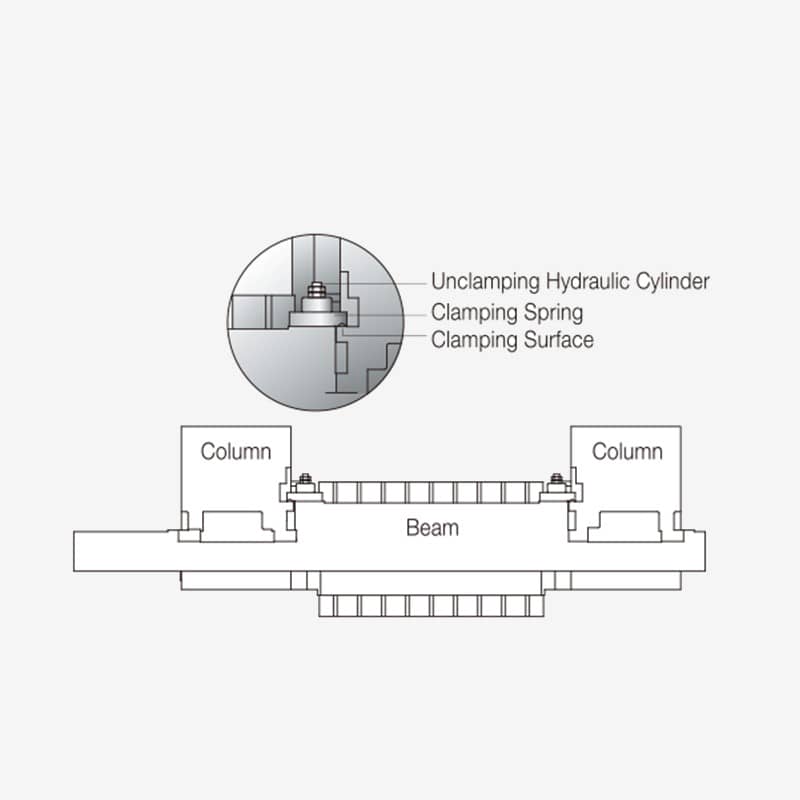

Powerful Clamping Mechanism for W-axis
-

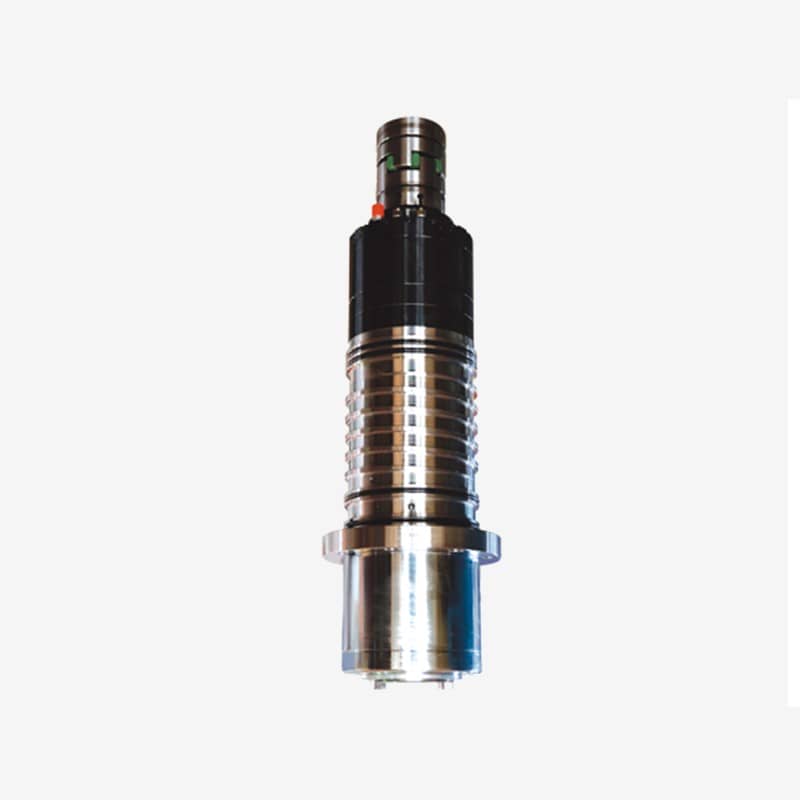

Belt Drive Spindle
With 2-steps Planetary Gearbox
BT-50, Max. 4000rpm
-
Direct-Drive Spindle with 2-steps Planetary Gearbox (Optional)
BT-50, 6000rpm / 8000rpm / 10000rpm
High Speed & High Torque in One Machine
-

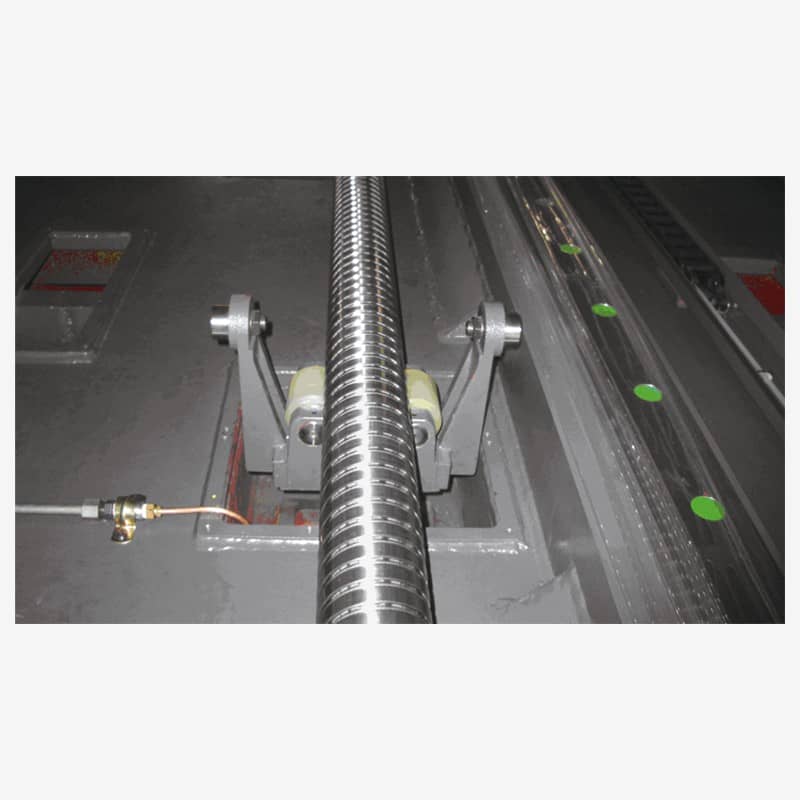

Supporter for Ballscrew on X-axis
-

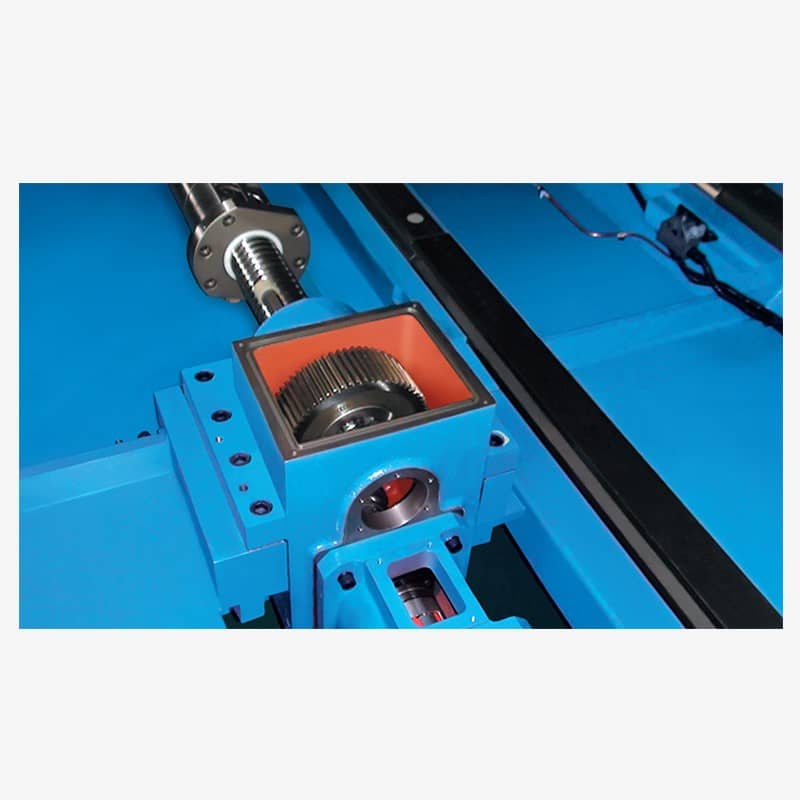

X-axis Free Backlash Transmission Gearbox
-

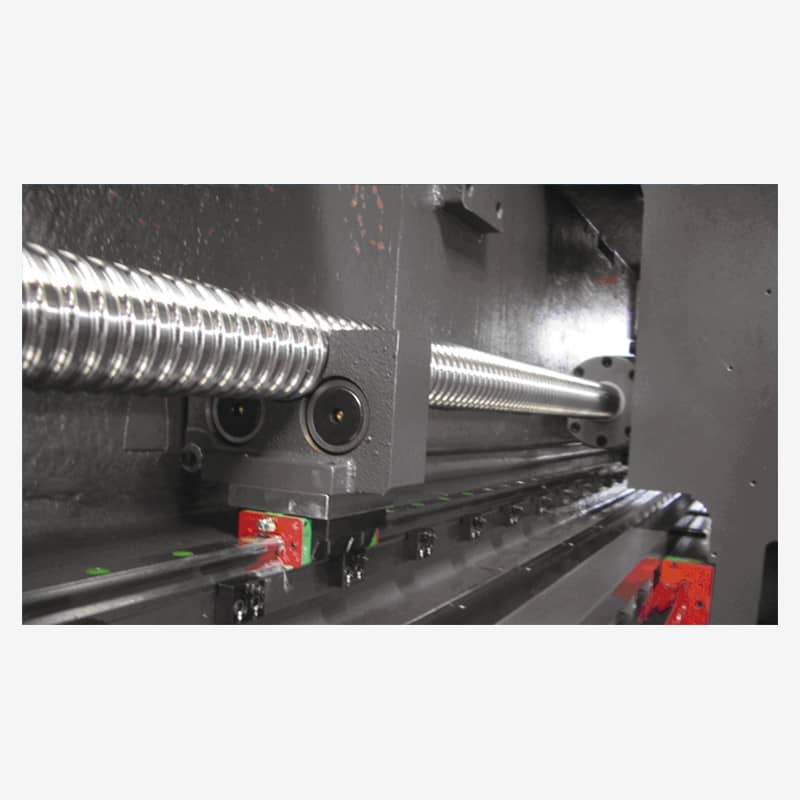

Supporter for Ballscrew on Y-axis
-

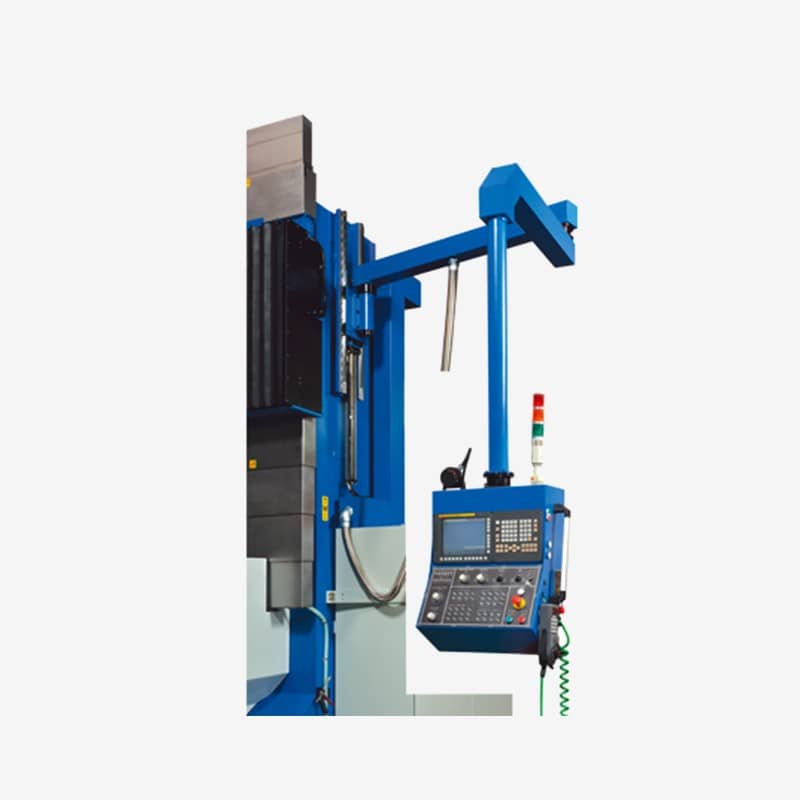

Operator’s Box by Lift Mechanism special for large machinery only.
