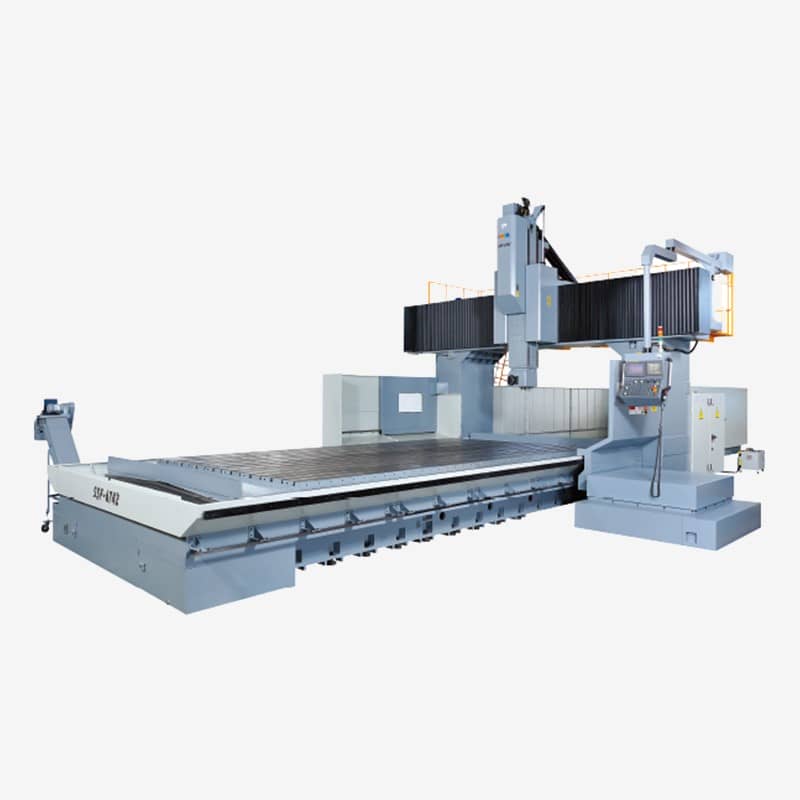

S5F-5742 / S5F-6742
| Item / Model | Unit | S5F-5742 | S5F-6742 |
|---|---|---|---|
| X Eksen Hareketi | mm | 5700 | 6700 |
| Y Eksen Hareketi | mm | 4200 | |
| Z Eksen Hareketi | mm | 1000 (1200) | |
| Tablo Boyutu | mm | 5000x3200 | 6000x3200 |
| T-Kanalları | mm | 22 ( 28 ) | |
| Tabla Yükleme Kapasitesi | kgs | 22000 | 24000 |
| İki Kolon Arası Mesafe | mm | 3500 | |
| Spindle Ucu ve Tabla Arası Mesafe | mm |
V-150 ~ 1150 mm ( 150 ~ 1350 mm ) H-288 ~ 1288 mm ( 288 ~ 1488 mm ) |
|
| Spindle Konikliği | ISO NO.50 BT-50、CAT-50、DIN 69871 | ||
| Spindle Devri | rpm | 20 ～ 3000 TWO STEP GEAR BOX | |
| Ana Motor Gücü | HP | 35 / 30 | |
| X Ekseni Boşta Hareketi | mm/min | 10000 ( 12000 ) | |
| Y,Z Ekseni Boşta Hareketi | mm/min | 10000 ( 12000 ) | |
| Kesme Değer Aralığı | mm/min | 1 ~ 5000 ( 1 ~ 8000 ) | |
| Minimum Paso Artırımı | mm/min | 0.001 | |
| Takım Kapasitesi | pcs | 40 ( 60 / 80 / 120 ) | |
| Maks. Takım Çapı | mm | Ø125 / Ø250 | |
| Maks. Takım Uzunluğu | mm | V-400 / H-400 | |
| Maks. Takım Ağırlığı | kgs | 20 | |
| Takım Seçme | ABS (Shortest path) | ||
| Takım Değiştirme | secs | V-8 / H-14 | |
| Güç Gereksinimi | Kva | 65 | |
| Alan Gereksinimi | mm | 14400x9100 | 16400x9100 |
| Makine Yüksekliği | mm | 5165 ( 5685 ) | |
| Makine Ağırlığı | kgs | 75000 | 85000 |
| Kontrol Sistemi |
Fanuc、Siemens、Heidenhain series etc. |
||
| Pozisyonlama | mm | JIS B6338 0.01/300, VDI 3441 P0.035 | |
| Tekrarlama | mm | ± 0.005 | |
- HORIZONTAL SPINDLE 90° AUTO DIVIDE (4 POSITION)
- 40 ATC MAGAZINE FOR V AND H TOOL CHANGE
- LUBRICATION SYSTEM
- SEMI-SPLASH GUARD
- SCREW-TYPE CHIP CONVEYOR
- CHAIN-TYPE CHIP CONVEYOR
- COOLANT EQUIPMENT
- SPINDLE OIL COOLER
- Z-AXIS HYDRAULIC BALANCE UNIT
- PNEUMATIC UNIT
- AIR BLOW FOR CHIP
- WORK LAMP
- AUTO POWER-OFF
- M.P.G
- PROGRAM END & ALARM LAMP
- RS-232 INTERFACE
- LEVELING BLOCK AND BOLTS
- TOOL KIT
- MAINTENANCE AND OPERATION MANUAL
- CONTROLLER OPERATION MANUAL AND ELECTRICAL CIRCUIT DIAGRAM
- INSPECTION LIST
- AUXILIARY TABLE (BY ORDER SIZE)
- NC (ROTARY TABLE, INDEX TABLE)
- 60、80、120 A.T.C MAGAZINE CAPACITY
- AUTO TOOL LENGTH DIAMETER MEASUREMENT
- AUTO TOUCH PROBE SYSTEM
- LINEAR SCALE FEEDBACK
- COOLANT THROUGH SPINDLE SYSTEM
- COOLANT THROUGH TOOL SHANK DEVICE
- COOLANT AUTO AIR MIST DEVICE
- SPINDLE TRANSMISSION GEAR OIL MIST
- HORIZONTAL SPINDLE AUTO DIVIDE (8,12,24,72 POSITION)
- RAISER BLOCK OF COLUMN (AVAILABLE 300 , 400 mm)
- SIGMA CNC Patent - The spindle ram and Z-axis are designed with 4-linear guideways (Roller type guideway, width 45mm) and a box-way construction. During heavy cutting vibrations are eliminated, and during fine cutting inert does not occur, resulting in higher surface accuracy.
- SIGMA CNC Patent – Y-axis configured by 3-linear guideways (Roller type guideway, width 65mm) for horizontal and vertical directions that offer greater stability and rigidity for the machine.

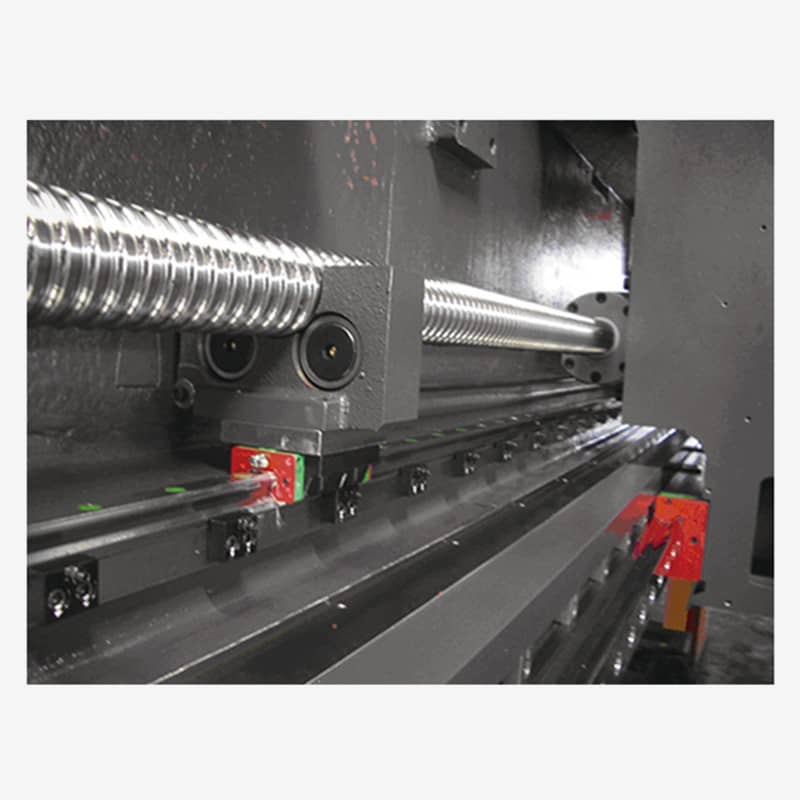

- All three axes(X, Y, Z) are Roller type linear guideways.
-

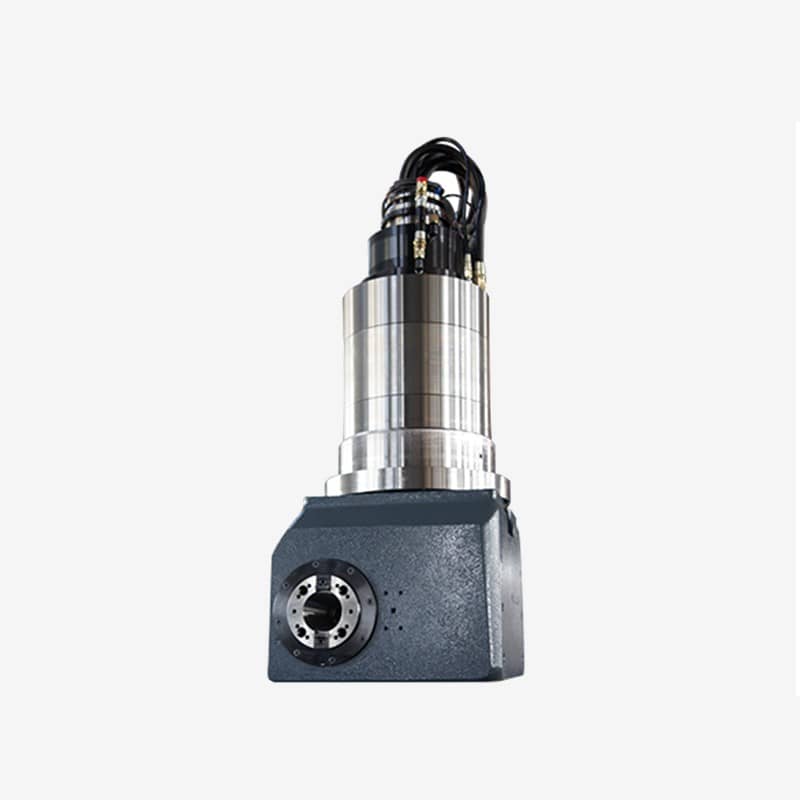

Belt Drive Type 5-Face Head (Vertical & Horizontal, All in one)
with 2-steps Planetary Gearbox
BT-50, 3000rpm
-

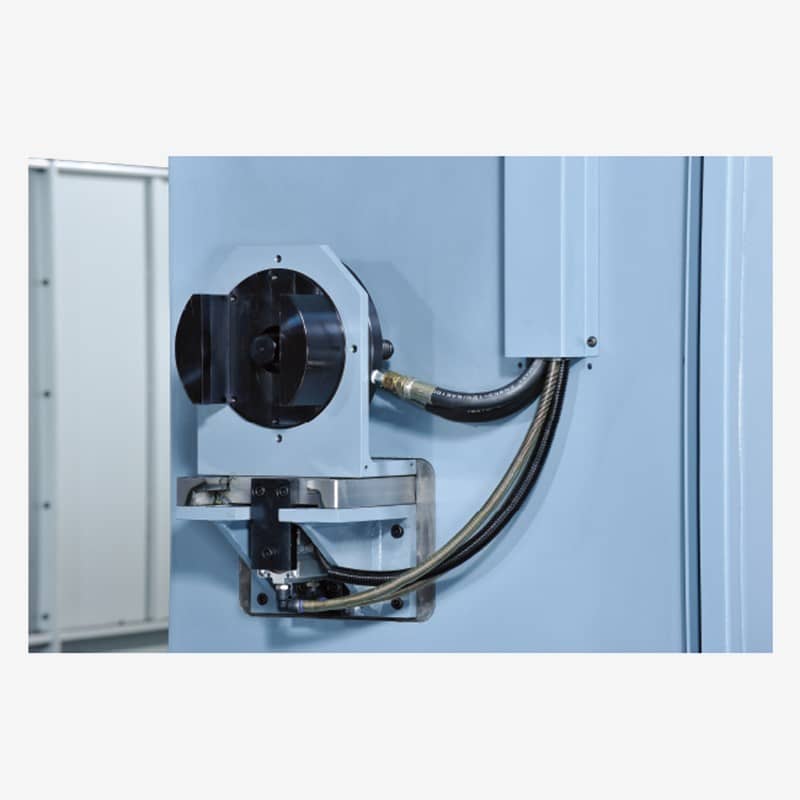

Tool Change Mechanism for Horizontal Spindle
-

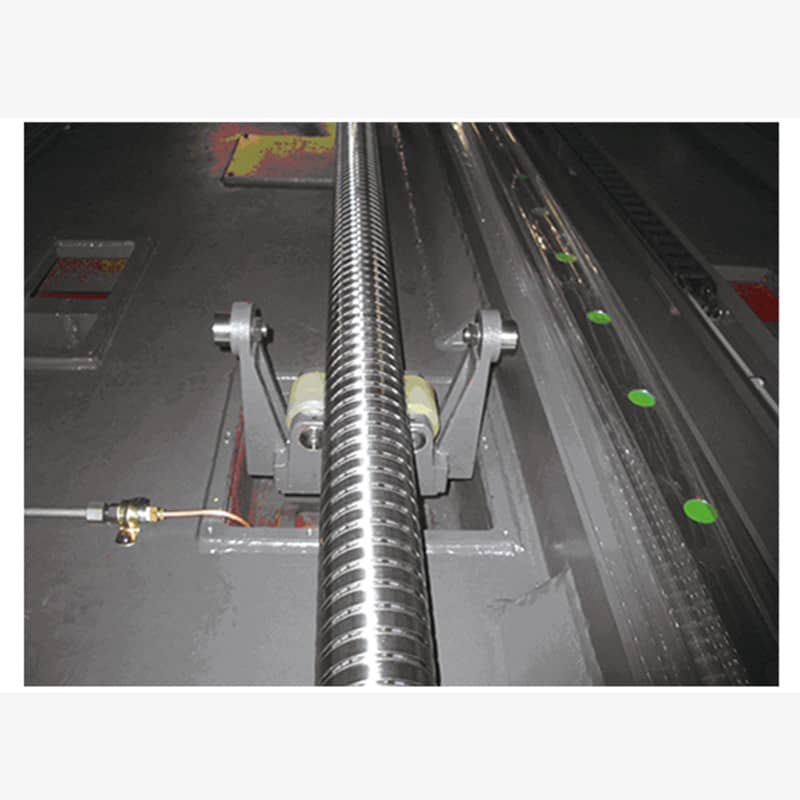

Supporter for Ballscrew on X-axis
-

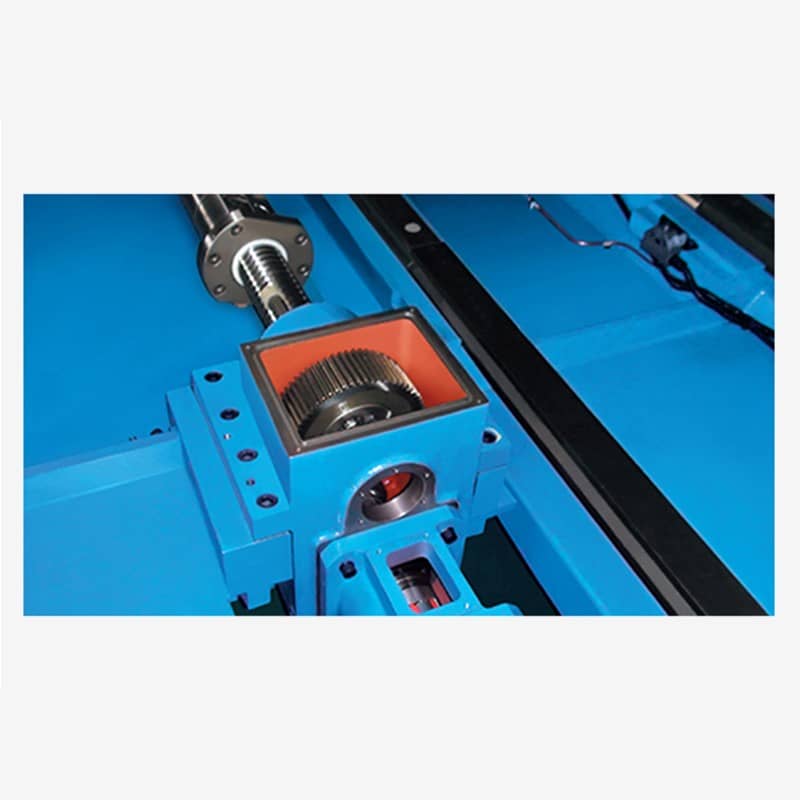

X-axis Free Backlash Transmission Gearbox
-
Supporter for Ballscrew on Y-axis
-

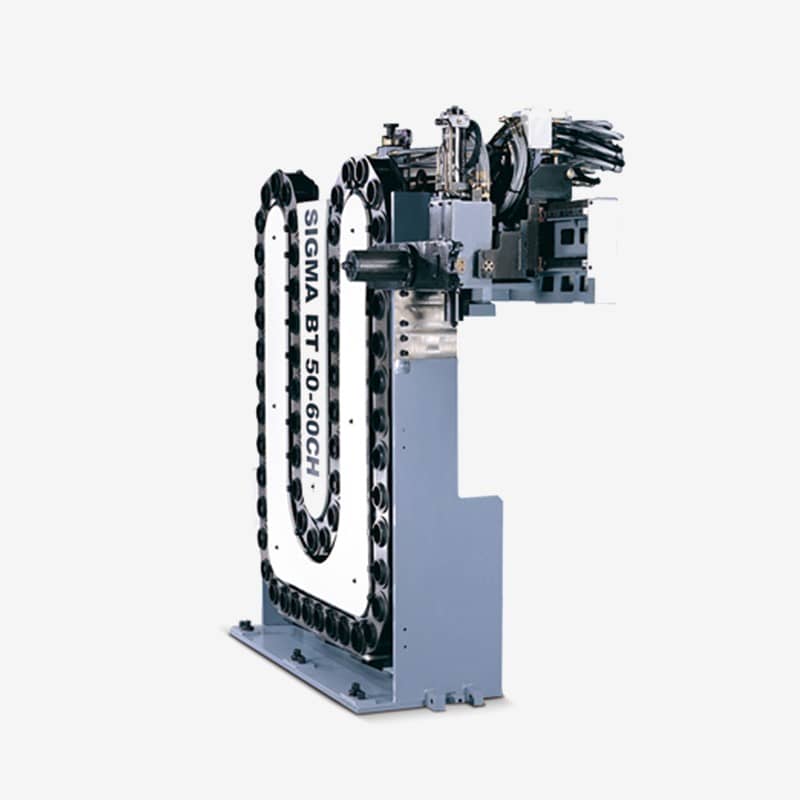

V & H Auto Tool Changer 40 pcs (Standard)
BT-50 (Optional 60 / 80 / 120pcs)
