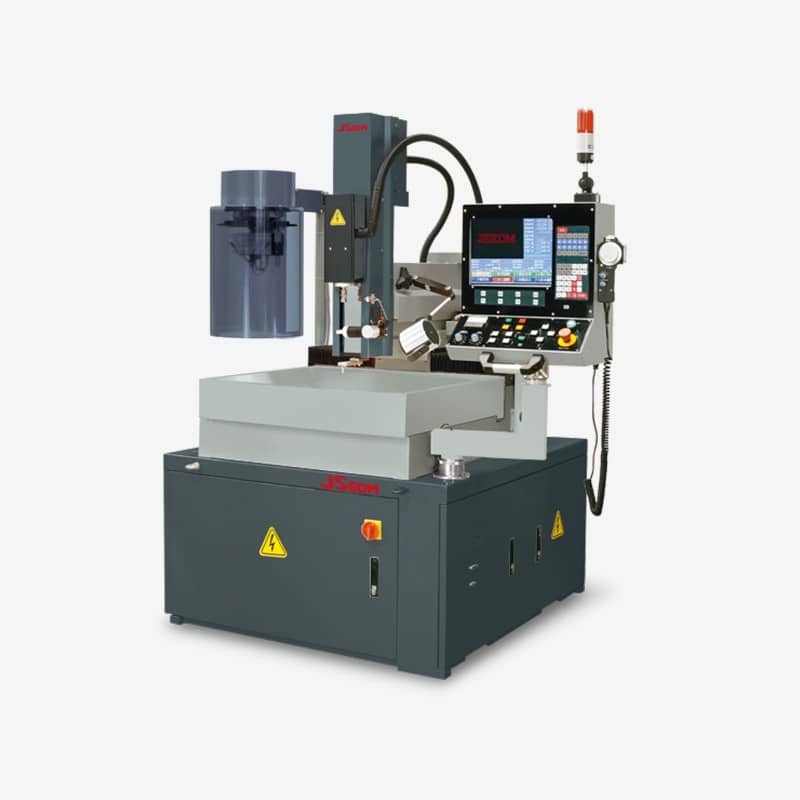

CNC Series | 5040A | 5060A | D4030A | D2535A | D2335

• Precision servo motors on X, Y, Z axis. The design provides excellent stability during drilling.
• Provides 1μ optical scale, linear slideway and ballscrew to ensure accurate movement.
• Reads NC program, G-code and DXF files directly. Finds the cutting start point automatically and begins the fine hole drilling process.
• When NC program is not available, the machining coordination can be inputted directly.
• Automatic centering, edging and internal diameter detection.
• Coordinates can rotate to any angle.
• Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
• Mirror image function.
• Automatically illustrates the path of current andnext drilling position with colors.
• Z-axis auto reset and depth calculation.(Z-axis checks hole depth automatically, and returns to complete any that is too shallow.)
• Data input by USB or network transfer.
• Simple and user-friendly interface.
